Grain Transfer Wagon

For better performance on the fields

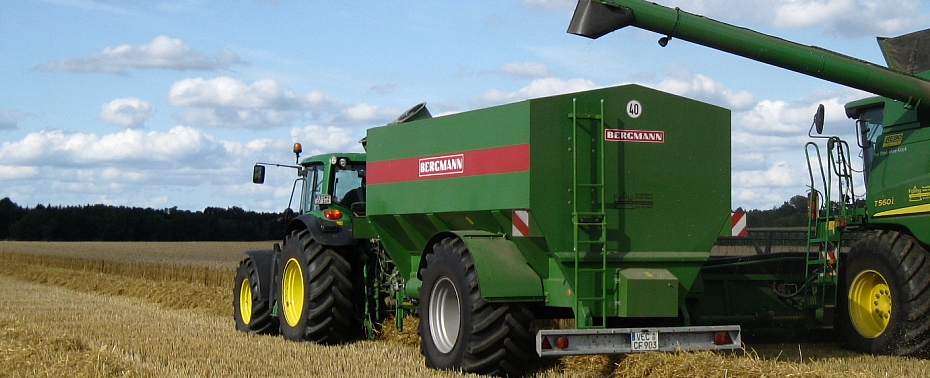

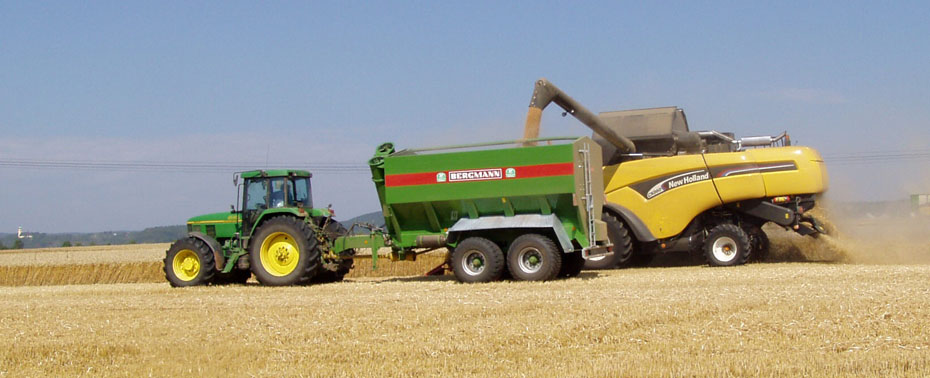

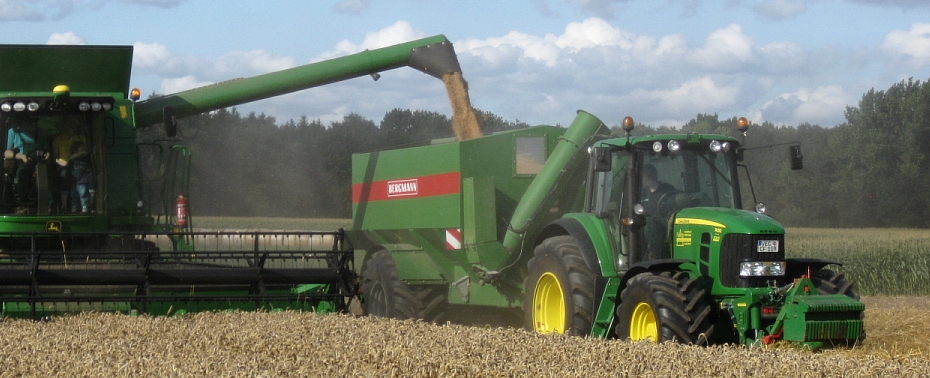

The grain transfer wagon is the logistic link for grain transportation between the continuously moving harvester and the transport vehicles waiting at the edge of the field.

During the time that the GTW receives the grain, transports and transfers it, the harvester continue to work without interruptions. This significantly increases harvest productivity.

Our components are made of only the highest quality standard products. In this way, we can guarantee safety, dependability and durability - even under continuous load.



GTW 21

Technical Data

Chassis: standard chassis with DLB
Bin dimensions (length x width): 4,800 x 2,550 mm
Vehicle dimensions
Length: 7,400 - 7,900 mm
Width: 2,990 mm
Loading height: 3,200 mm
Capacity(DIN): 21 m³
Max gross weight
Road: 12.,000 kg
Field use: 21,000 kg
Transfer conveyor loading height: 4,800 mm
Conveyor diameter: Feeder conveyor 350 mm
  Transfer conveyor 400 mm
Power demand
KW  88 - 184
PS 120 - 250



GTW 25

Technical Data

Chassis: standard chassis with DLB
Bin dimensions (length x width): 4,800 x 2,550 mm
Vehicle dimensions
Length: 7,400 - 7,900 mm
Width: 2,650 - 3,000 mm
Loading height: 3,320 / 3,740 mm
Capacity (DIN): 21/25 m³
Max gross weight
Road: 20,000 - 21,000 kg
Field use: 24,000 kg
Transfer conveyor loading height: 4,920 mm
Conveyor diameter: Feeder conveyor 350 mm
  Transfer conveyor 400 mm
Power demand
KW 96 - 206
h.p. 130 - 280



GTW 330

Technical Data

  GTW 330
Chassis: Tandem
Bin dimensions (length x width) 6,760 x 2,490 mm
Vehicle dimensions
Lenght: 9,930 mm
Width: 2,550 - 3,000 mm
Loading height: 3,600 mm
Capacity (DIN): 30/33m³ **
Max gross weight
Road: 24,000 kg
Field use: 35,000 kg
Transfer conveyor loading height: 5,800 – 3,625 mm
Conveyor diameter
Feeder conveyor: 500 mm
Transfer conveyor 600 mm
Power demand:
KW 132 - 257
h.p. 180 - 350

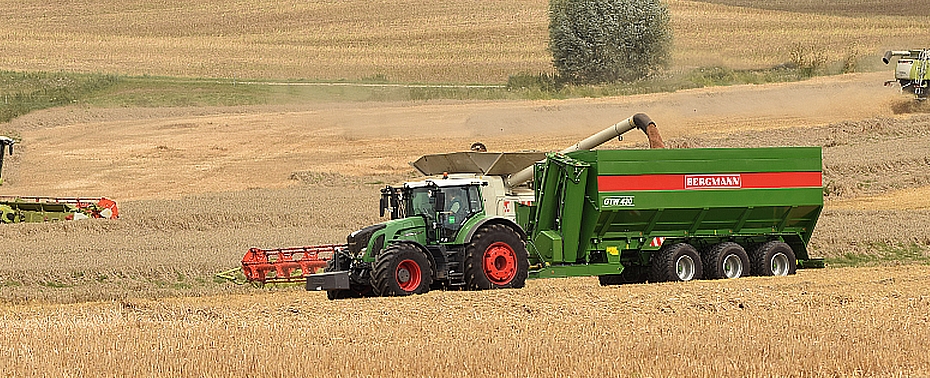

BERGMANN GTW 430



Chaser bin for the highest performances

Technical Data

Chassis: Tridem
Bin dimensions (L x W): 8,500 x 2,490 mm
Vehicle dimensions
Length: 11,690 mm
Width: 2,550 - 3,000 mm
Height: 3,975 mm
Capacity: 38,5 m³
with body extension - optionally: 43 m³
Laterial loading height: 3,600 mm
Ø feeder conveyor: 500 mm
Ø transfer conveyor: 600 mm
Overloading height
max.** 3,625 - 5,800 mm
max.*** 3,150 - 5,625 mm
Overloading width
max.** 725 - 3,000 mm
max.*** 1,315 - 3,325 mm
Overloading capacity: 1,100 t/h
Net weight*: 11,600 kg
Gross weight:
- street: 34,000 kg
- field: 48,000 kg
