New Repex

TOP Engineering

  • Max. gross weight: 18 - 21 t
  • Stably body
  • Lowered steel floor
  • Four chains (each 11 x 31 mm, 15 t/chain)

TOP Performer

  • Pick-up intake width: 1.940 mm
  • 41 knives in one row, no tools needed for changing knives
  • 35 mm short cut

Technical Data

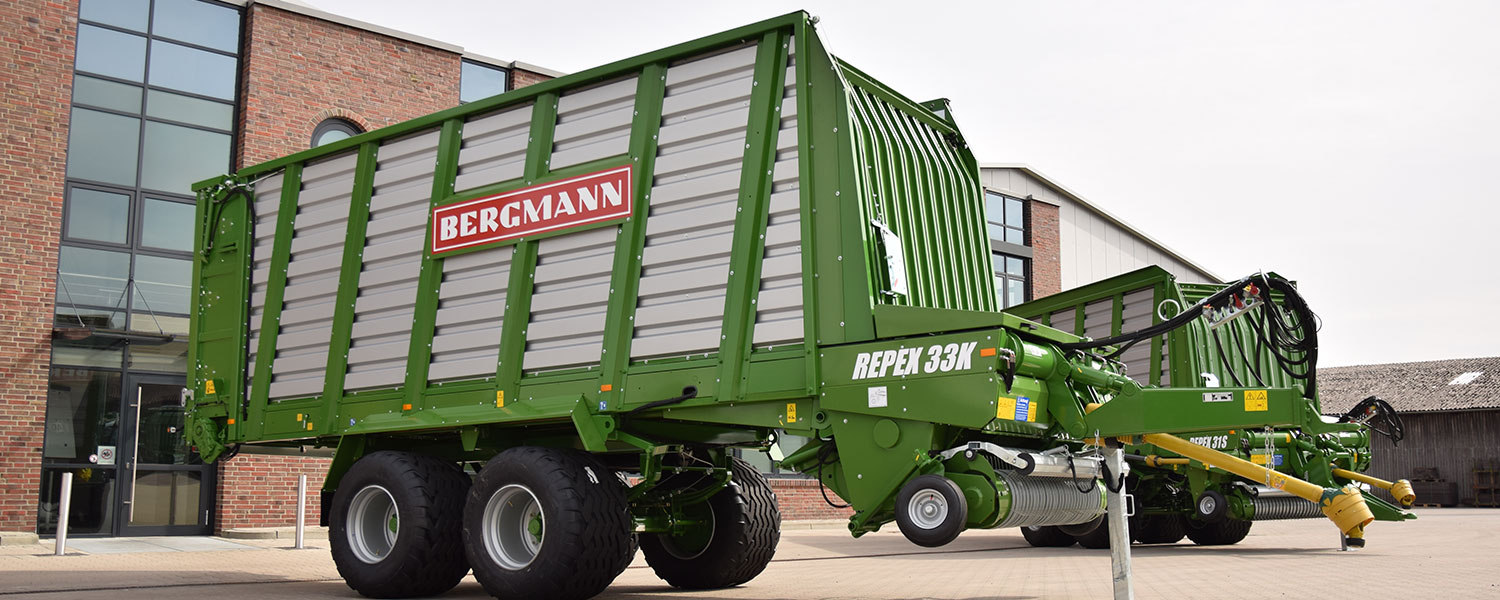

Vehicle dimensions REPEX 30 K REPEX 33 K REPEX 35 K
Length: 8.860 mm 9.610 mm 9.610 mm
Width: 2.550 mm 2.550 mm 2.550 mm
Height: 3.700 mm 3.700 mm 3.900 mm
Ground clearance pick-up: 350 mm ~ 350 mm ~ 350 mm
Ground clearance with extended hydraulic drawbar: 600 mm ~ 600 mm ~ 600 mm
Net weight: 7.400 kg 7.650 kg 7.700 kg
Maximum gross weight: 18.000 - 19.000 kg 21.000 kg 21.000 kg
Payload: 10.600 - 11.600 kg 13.350 kg 13.300 kg
Capacity at medium compression: 53,6 m³ 59,8 m³ 63,5 m³
Capacity according to DIN 11741: 29,8 m³ 33,2 m³ 35,3 m³
Number of knives: 41 St. 41 St. 41 St.
Cut length: 35 mm 35 mm 35 mm
Pick-up width: 1.940 mm 1.940 mm 1.940 mm
Power demand
KW 88 - 147 88 - 147 88 - 147
PS 120 - 200 120 - 200 120 - 200



































* equipment-related
Measures, weights and technical data subjects to change without notice. All illustrations, dimensions and weights do not necessarily correspond to the series model and are non-binding.
